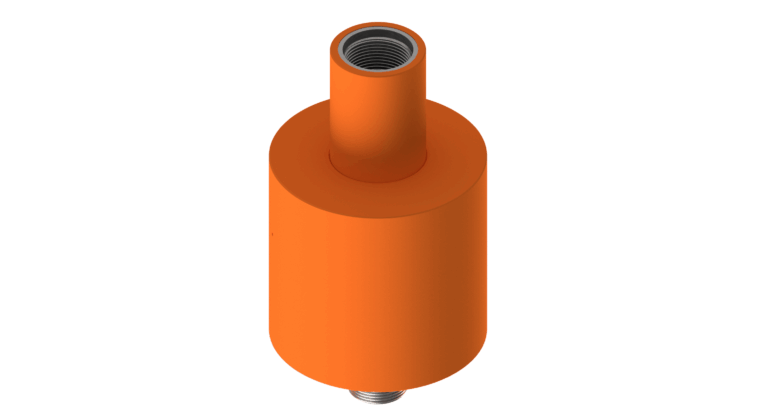

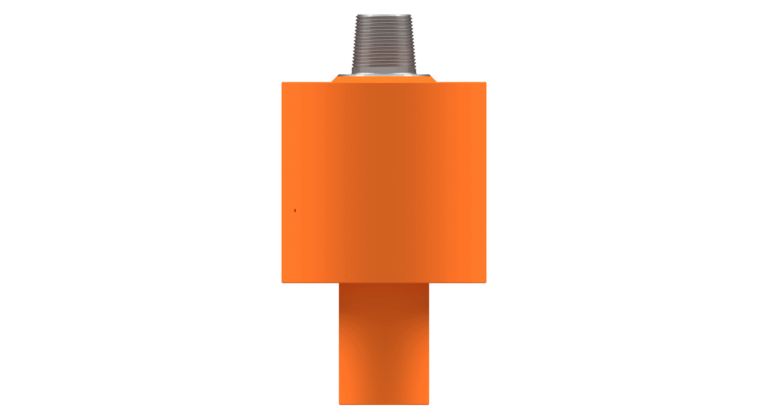

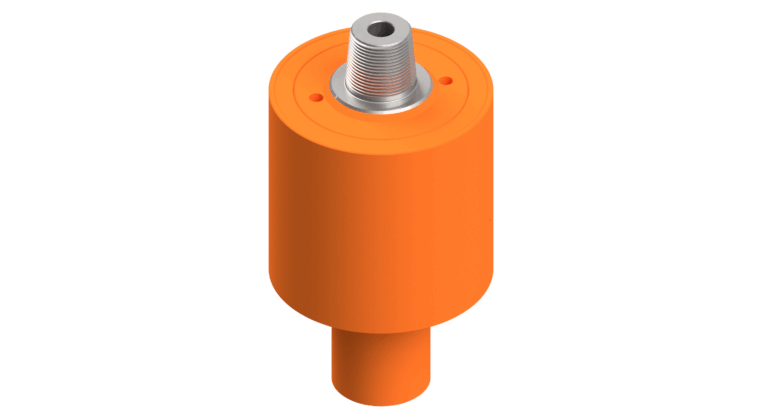

15” Floating Shock Sub
The Mammoth Floating Shock Sub is designed to reduce vibration and shock by absorbing these energies from being transferred to the powerhead during rotational pulldown and pullback operations.
Mammoth Floating Shock Subs are manufactured from superior quality materials and are subjected to specific heat treatment processes to maximize the lifespan of the tooling & increase drilling productivity.
The Mammoth Floating Shock Sub is designed to reduce vibration and shock by absorbing these energies from being transferred to the powerhead during rotational pulldown and pullback operations to maximize the lifespan of the tooling and increase drilling productivity.
Mammoth Shock Sub is designed to address:
- Wear and tear on conventional shock sub systems
- Multidirectional absorbency limitations
- Inadequate seal characteristics
- Need for enhanced safety features
The Mammoth Shock Sub is designed to address
- Wear and tear on conventional shock sub systems
- Multidirectional absorbency limitations
- Inadequate seal characteristics
- Need for enhanced safety features
Drill Rig Benefits
- Reduces drill rig maintenance by dampening torsional and axial shock loads.
- Increases penetration rates by keeping the bit in more uniform contact with ore formation.
- Allows use of higher pull-down force and increased rotary speeds in demanding drilling areas
- Increases bit life by dampening repeated shock loads normally transmitted to the bit bearings & cutting structure
- Decreases noise levels by eliminating metal to metal contact between rotary drive & drill pipe
- Rotary and DTH compatible
| Model | Diameter Element | Shoulder to Shoulder Size (Standard) | Drill Pipe OD (For Guidance Only) | Pull Down Force (LBS) | Approx Weight |
|---|---|---|---|---|---|
| 10 | 10″ | Per customer request | 3½ – 6″ | 30 000 – 55 000 | 100 |
| 15 | 15″ | Per customer request | 4½” – 7½” | 30 000 – 60 000 | 350 |
| 18 | 18″ | Per customer request | 6″ – 7⅝” | 50 000 – 121 000 | 450 |
| 22 | 22″ | Per customer request | 7⅝” – 8 ⅝” | 50 000 – 121 000 | 700 |
| 24 | 24″ | Per customer request | 7⅝” – 8 ⅝” | 50 000 – 121 000 | 800 |
| 28 | 28″ | Per customer request | 8 ⅝” – 10 ¾” | 100 000 – 150 000 | 1050 |
| 34 | 34″ | Per customer request | 8 ⅝” – 13⅜” | 100 000 – 150 000 | 1500 |
Floating Shock Sub
Floating Shock Sub
