3D View

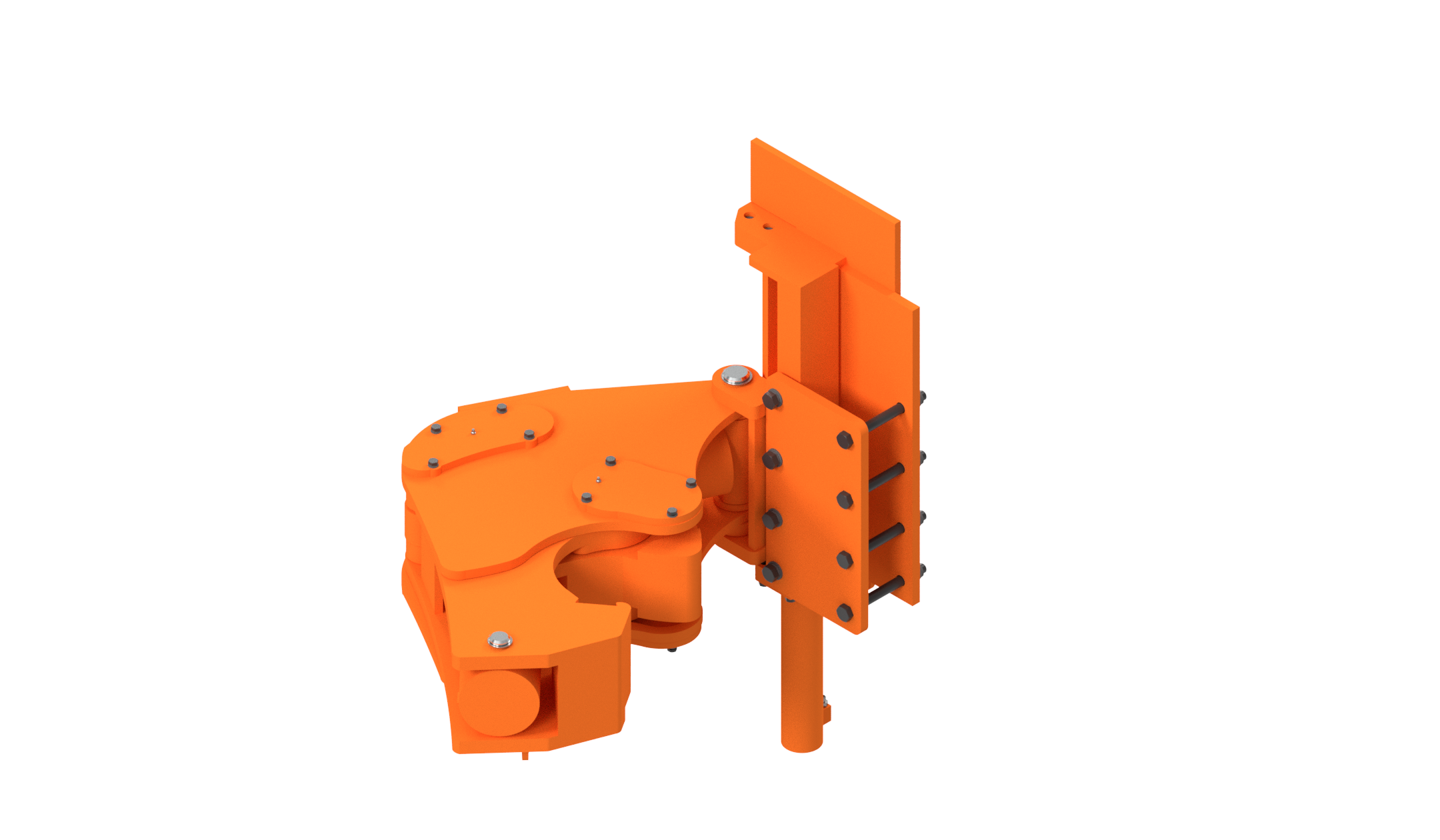

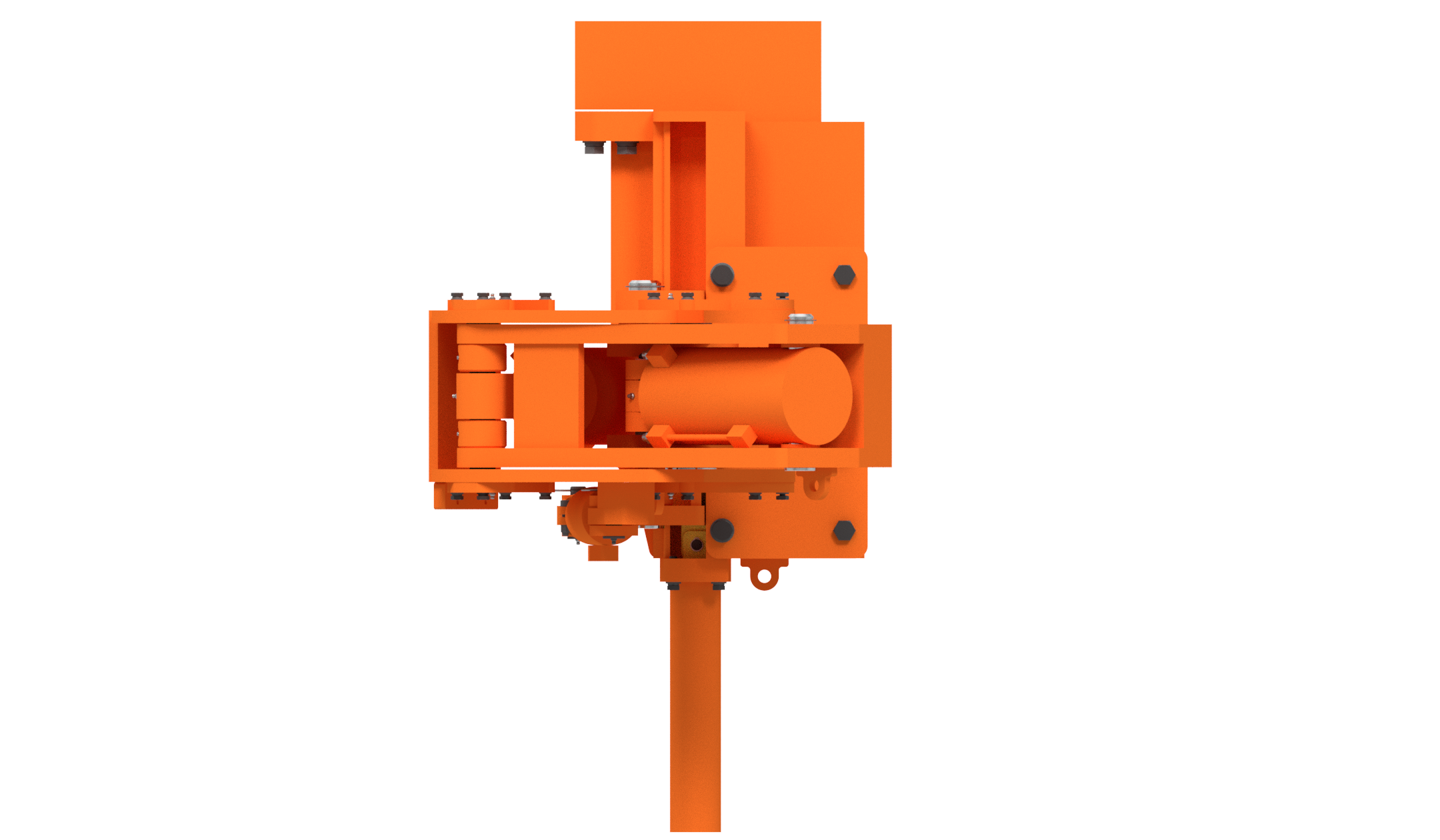

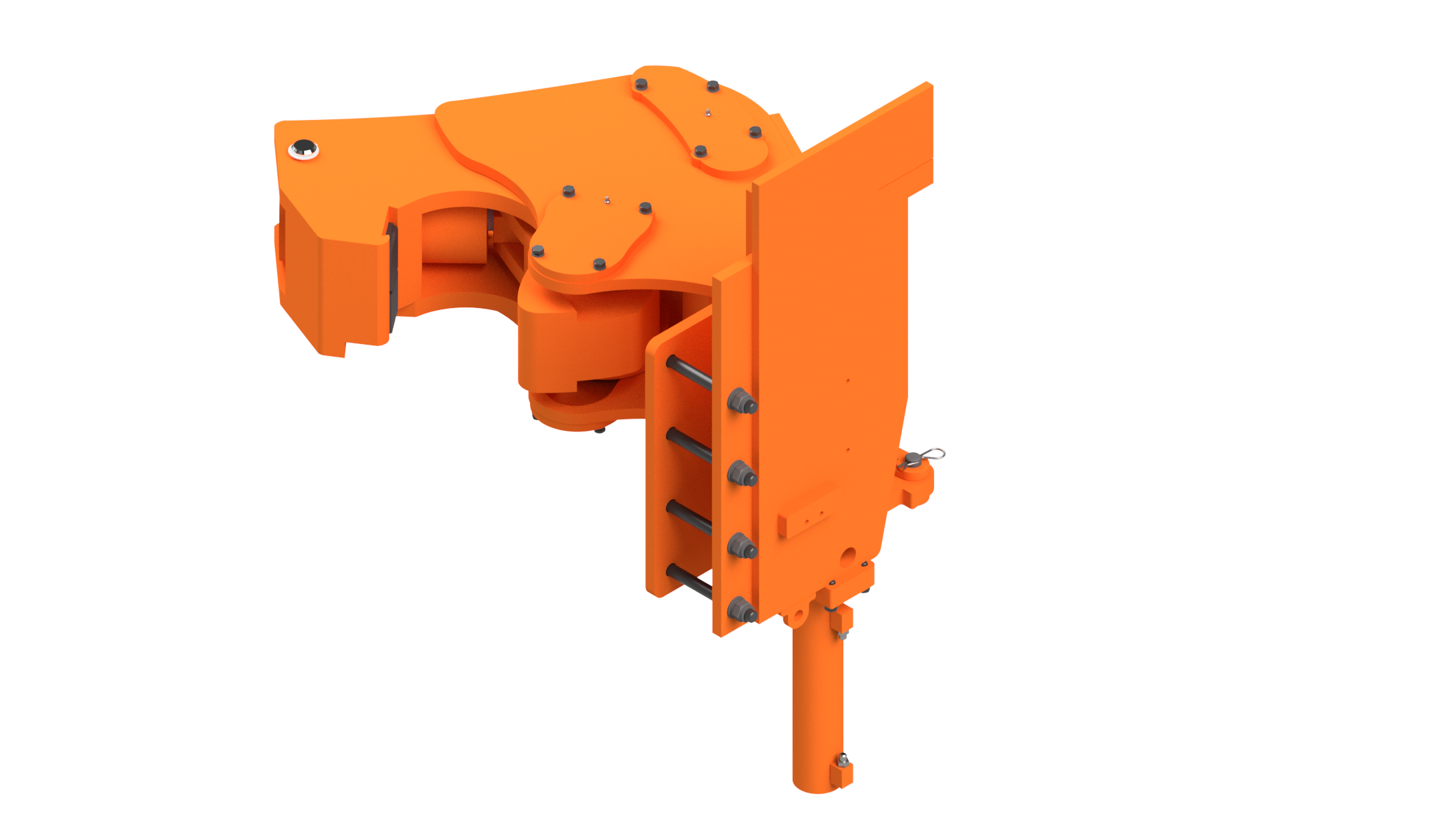

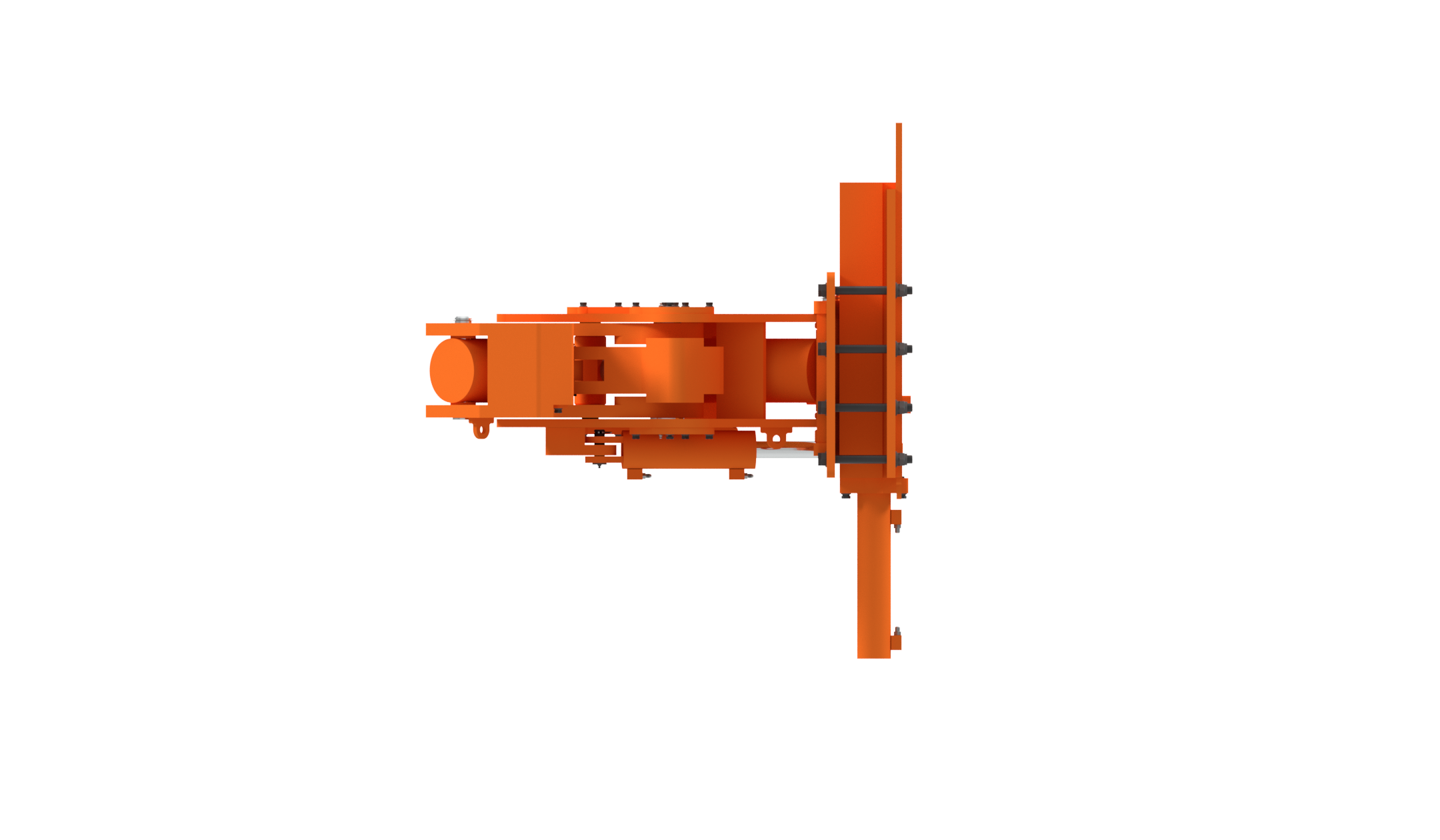

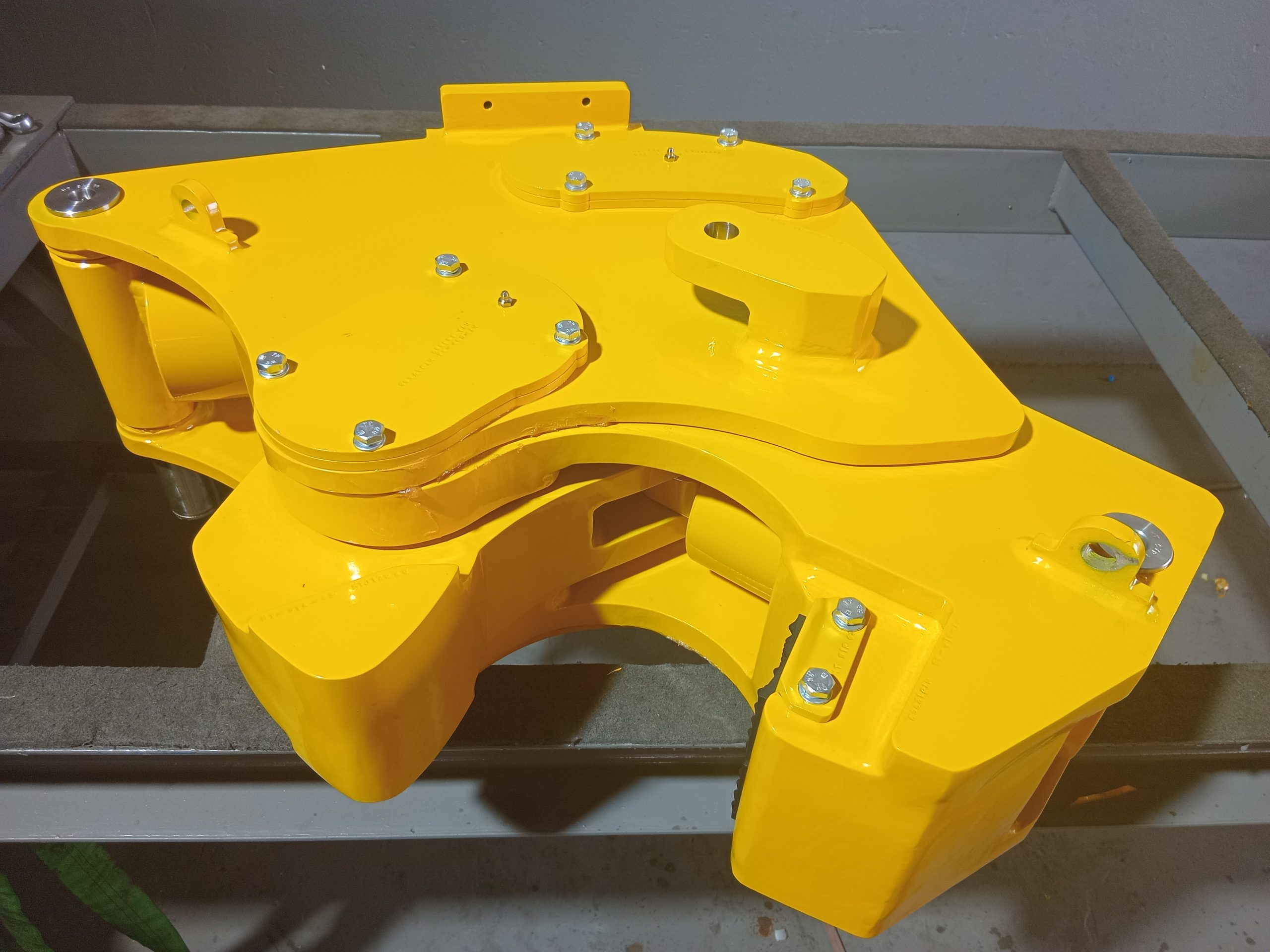

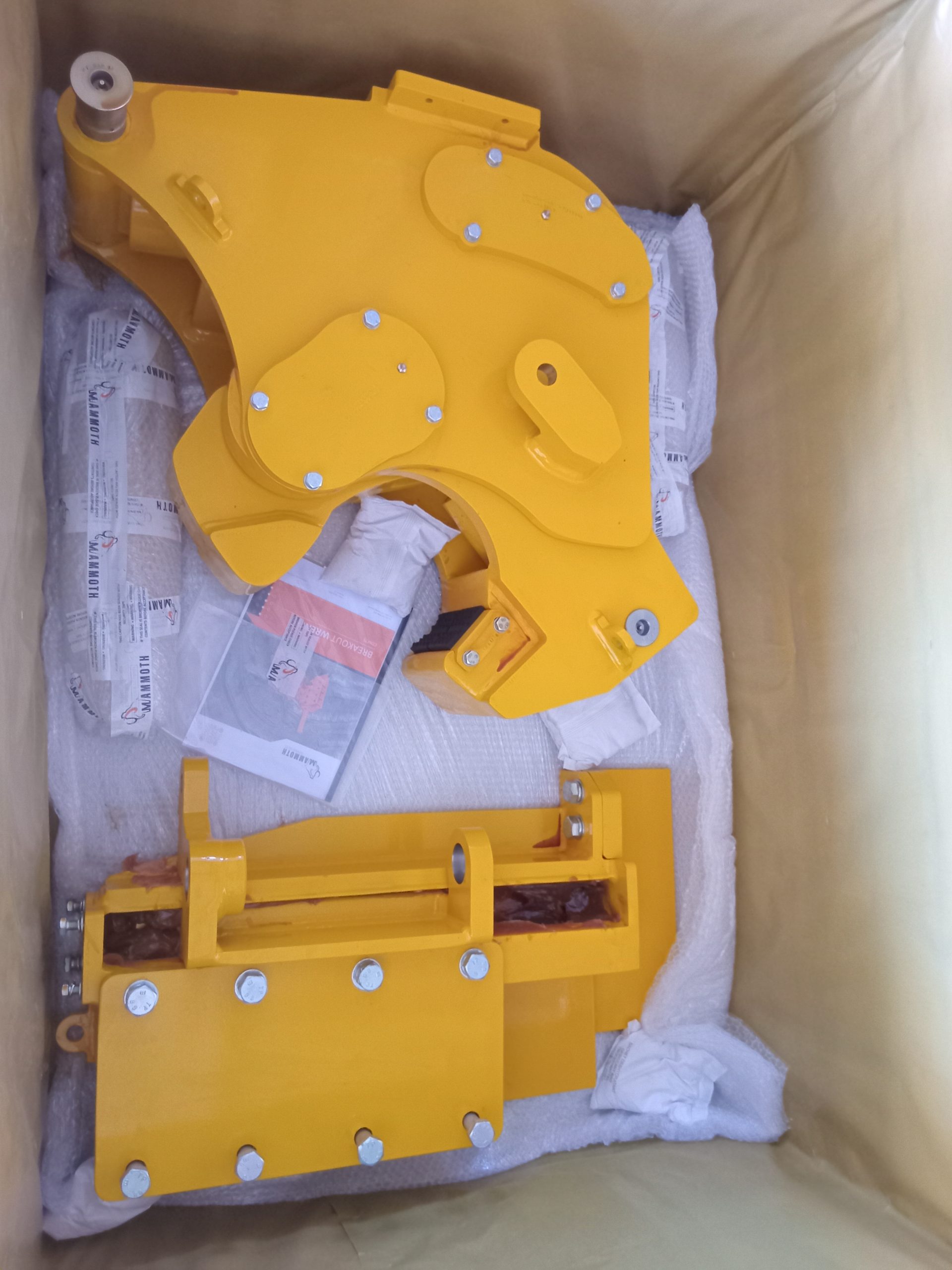

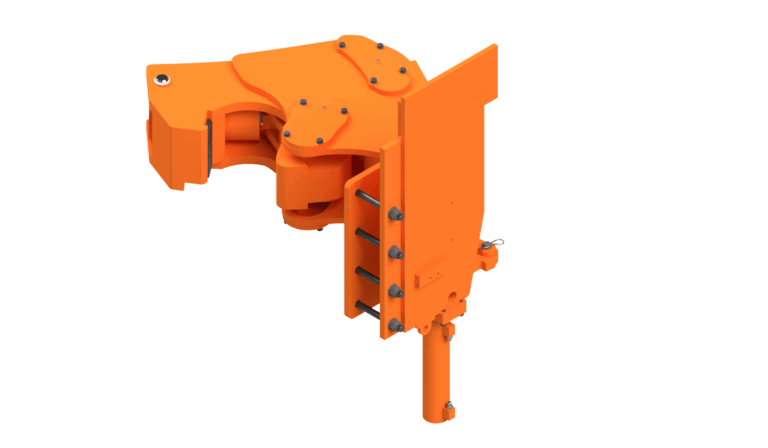

CDM75 Breakout Wrench
The Mammoth Breakout Wrench was developed to meet the requirements of a hands-free breakout wrench for all conditions and any OEM Drill Rig. Mammoth Breakout Wrench is designed to address Locked joints found in the drill stem Wrench-slip when loosening drill rods, hammers and bits The lack of compatible Cross Platform Breakout Wrenches Unsafe Breakout procedures
• Fully Automated
• Electrical controls and hydraulics are integrated into the current drill rig system
• Our patented adjustable bracket allows the wrench to be set at the best operating height.
• It can be adapted to suit the specific angle drilling requirements
• Fully repairable
Grid Range : 7″” up to 8 5/8
Mounting options : Mast Mounted
-Hydraulic adjustable height ,
300mm travel
-Fixed Height mounting
Working Pressure : 2300-2800 PSI
Breakout Torque : Up to 90,085 N.M |66,443 FT/LB
Product Details
Benefits
• Fully Automated
• Electrical controls and hydraulics are integrated into the current drill rig system
• Our patented adjustable bracket allows the wrench to be set at the best operating height.
• It can be adapted to suit the specific angle drilling requirements
• Fully repairable
