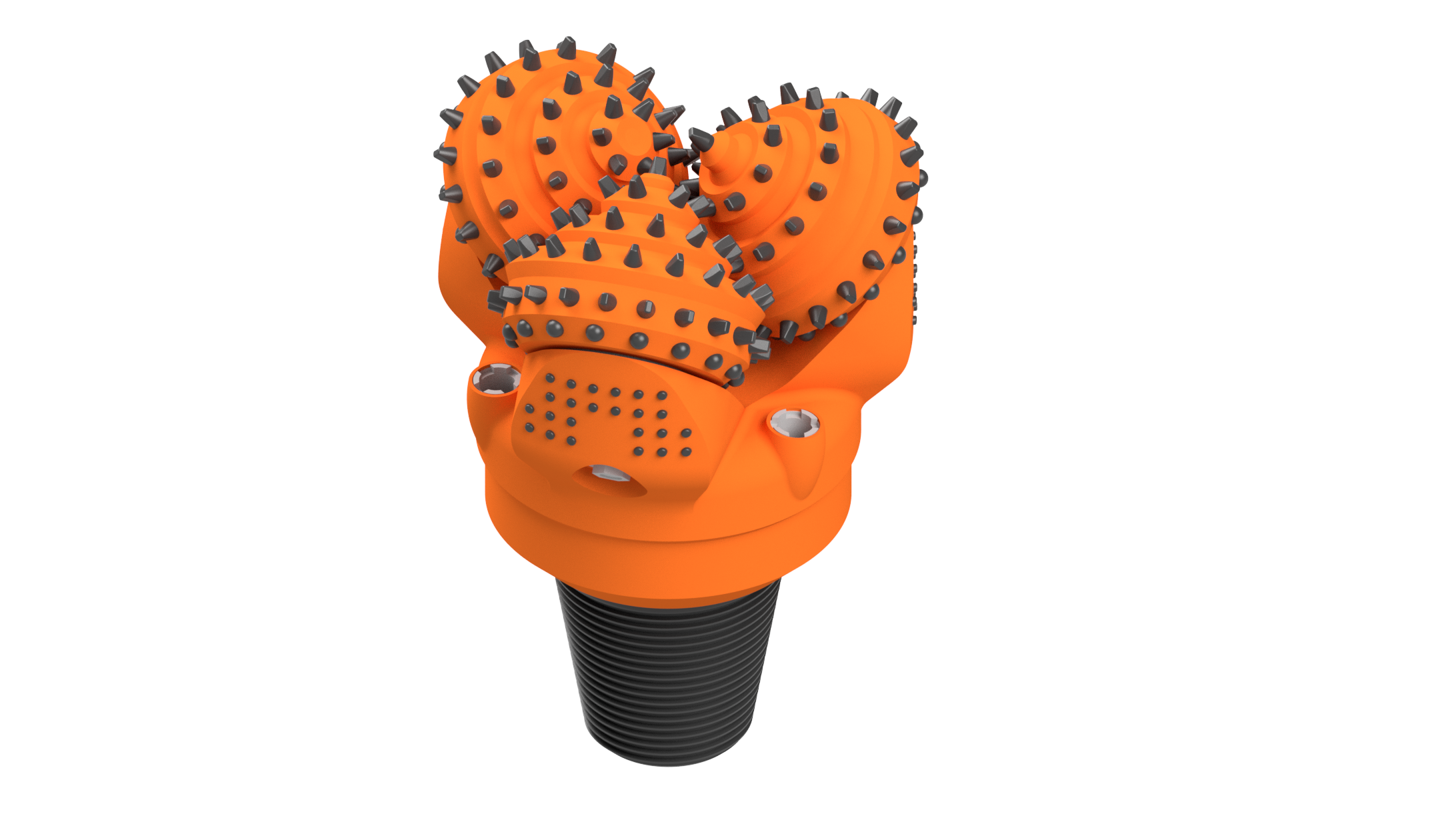

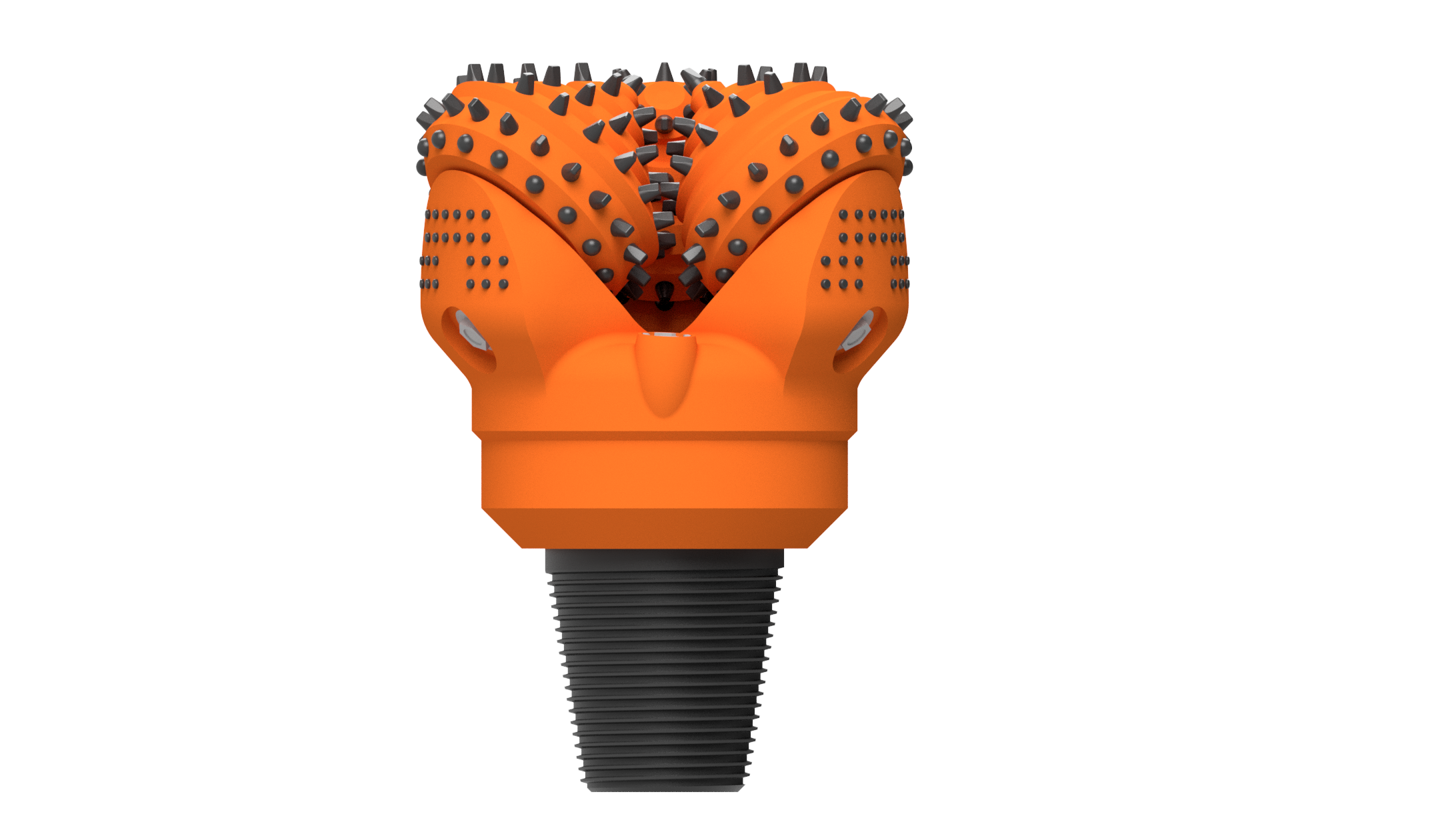

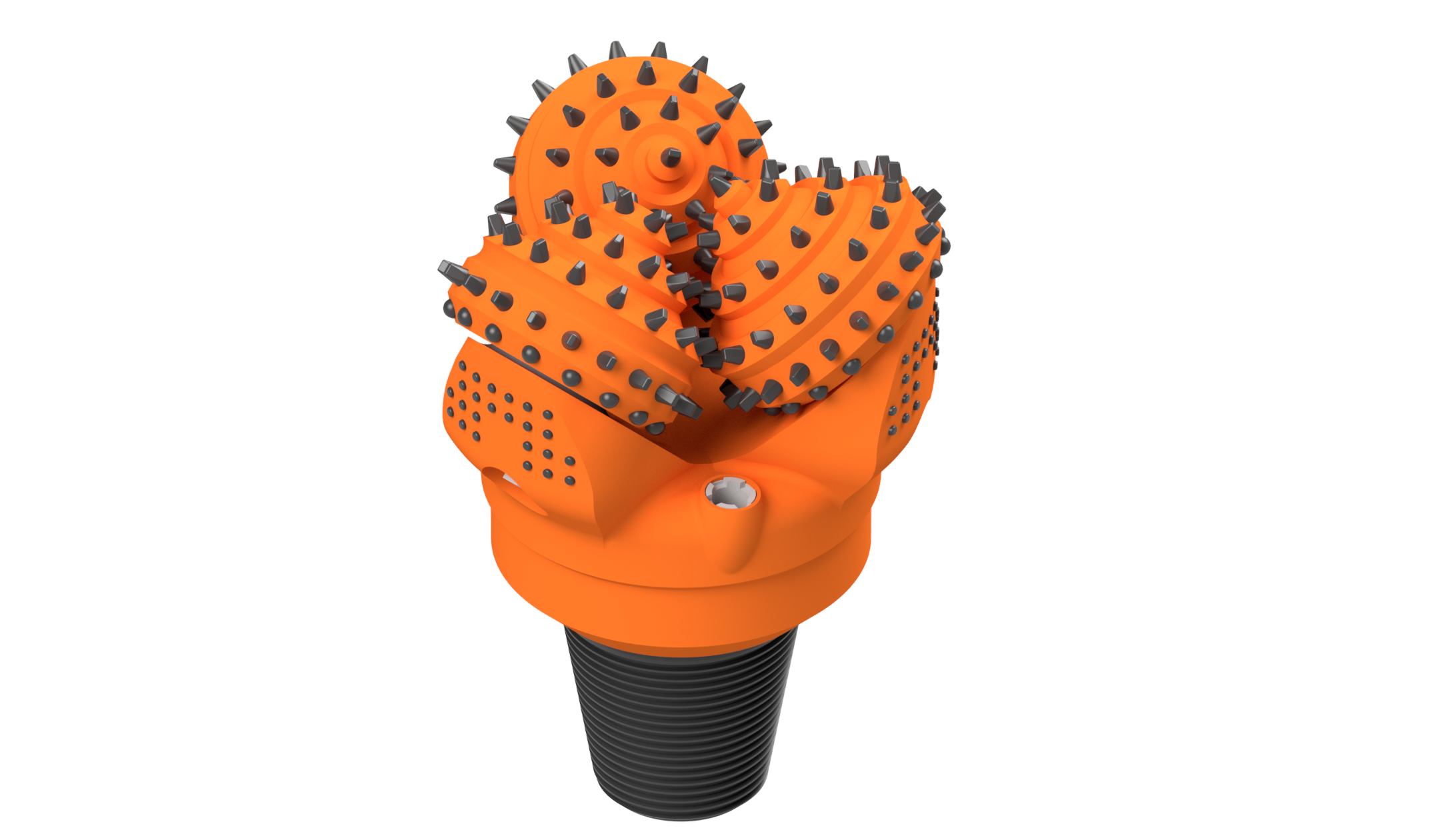

Tricone Bit
Three rotating cones that crush and break rock during drilling. It’s commonly used in oil, gas, and mining operations.
Tricone bit
Three rotating cones that crush and break rock during drilling. It’s commonly used in oil, gas, and mining operations.
Benefits
- Tricone bits are highly versatile and can be used in a wide range of geological conditions.
- The three cones working simultaneously allow for more efficient rock removal and faster drilling speeds compared to single-cone bits.
- With proper maintenance, Tricone bits have a long lifespan, especially those with high-quality tungsten carbide inserts.
Available Sizes: Tricone Bits are available in sizes ranging from 5⅝” to 9⅞”, catering to a variety of drilling requirements.
| Tricone Drill Bit – 5 5/8″ | |
| Formation | Soft, Medium and Hard Formations |
| Bearing Type | Roller-Ball-Friction |
| Circulation Type | Jet Air |
| Weight on Bit | 3,500 – 6,500 lbs / inch of bit diameter |
| Speed | 70 – 120 RPM |
| Rock UCS | 10,000 – 28,000 PSI |
| Heel Row | Hardfacing |
| Gage Row | Chisel |
| Inner & Nose Rows | Chisel |
| Shirttail Protection | TC Inserts with Hardfacing |
| Pin Connection | 2 7/8 REG API |
| Metric Bit Diameter | 143 mm |
| Product Weight | 11 kg |
| Tricone Drill Bit – 5 7/8″ | |
| Formation | Soft, Medium and Hard Formations |
| Bearing Type | Roller-Ball-Friction |
| Circulation Type | Jet Air |
| Weight on Bit | 4,500 – 7,500 lbs / inch of bit diameter |
| Speed | 70 – 120 RPM |
| Rock UCS | 24,000 – 44,000 PSI |
| Heel Row | Hardfacing |
| Gage Row | Chisel |
| Inner & Nose Rows | Chisel |
| Shirttail Protection | TC Inserts with Hardfacing |
| Pin Connection | 3 1/2 REG API |
| Metric Bit Diameter | 149 mm |
| Product Weight | 12 kg |
| Tricone Drill Bit – 6 3/4″ | |
| Formation | Soft, Medium and Hard Formations |
| Bearing Type | Roller-Ball-Roller |
| Circulation Type | Jet Air |
| Weight on Bit | 3,500 – 6,500 lbs / inch of bit diameter |
| Speed | 60 – 110 RPM |
| Rock UCS | 27,800 – 52,000 PSI |
| Heel Row | Flat |
| Gage Row | Conical |
| Inner & Nose Rows | Conical |
| Shirttail Protection | TC Inserts with Hardfacing |
| Pin Connection | 3 1/2 REG API |
| Metric Bit Diameter | 171 mm |
| Product Weight | 19 kg |
| Tricone Drill Bit – 7 7/8″ | |
| Formation | Soft, Medium and Hard Formations |
| Bearing Type | Roller-Ball-Roller |
| Circulation Type | Jet Air |
| Weight on Bit | 4,000 – 7,000 lbs / inch of bit diameter |
| Speed | 50 – 120 RPM |
| Rock UCS | 24,000 – 44,000 PSI |
| Heel Row | Spherical |
| Gage Row | Blunt Conical |
| Inner & Nose Rows | Conical |
| Shirttail Protection | TC Inserts with Hardfacing |
| Pin Connection | 4 1/2 REG API |
| Metric Bit Diameter | 200 mm |
| Product Weight | 34 kg |
| Tricone Drill Bit – 9 7/8″ | |
| Formation | Soft, Medium and Hard Formations |
| Bearing Type | Roller-Ball-Roller |
| Circulation Type | Jet Air |
| Weight on Bit | 3,500 – 6,500 lbs / inch of bit diameter |
| Speed | 50 – 110 RPM |
| Rock UCS | 25,000 – 42,500 PSI |
| Heel Row | Flat |
| Gage Row | Conical |
| Inner & Nose Rows | Conical |
| Shirttail Protection | TC Inserts with Hardfacing |
| Pin Connection | 6 5/8 REG API |
| Metric Bit Diameter | 251 mm |
| Product Weight | 57 kg |
Product Details
Benefits:
• Tricone bits are highly versatile and can be used in a wide range of geological conditions.
• The three cones working simultaneously allow for more efficient rock removal and faster drilling speeds compared to single-cone bits.
• With proper maintenance, Tricone bits have a long lifespan, especially those with high-quality tungsten carbide inserts.
