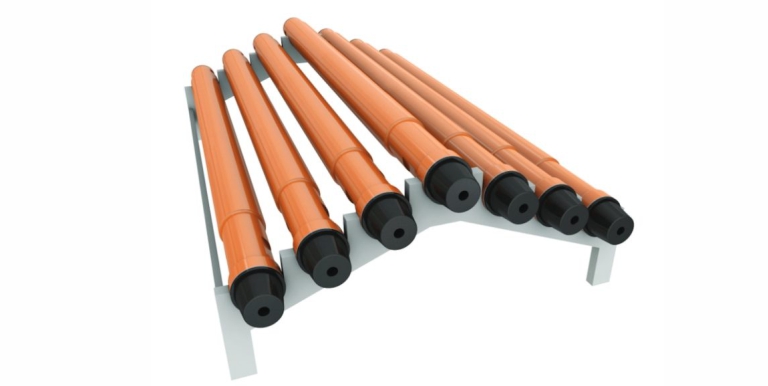

Drill Rods

The Mammoth Drill Rod is an addition to increasing the length of the drill bit depth to extend drilling penetration.The Mammoth Drill Rod can be manufactured to individual requirements and specifications.

Important Notice

We manufacture Drill Rods for all machine types and sizes. Our drill rods and components are available for all drill rig types, designed for minimizing operation costs and maximizing your drilling productivity. Our drill pipes are used worldwide in infrastructure and tunnel construction projects. They are commonly in open pit mining, oil, gas and water exploration and in the installation of underground pipes, cables or conduits.
This can be, for example, a blast hole drilling in mining, a geothermal energy drilling or water well drilling. Highest quality in materials and manufacturing results in the highest performance of our products and your projects. Our API and ISO approved quality management system ensures an entire material traceability. A highly skilled team of specialists are always available for your support.

Product Description

Solaris Drill Rods constructed from: Graded Mild Steel Typically used in Nonabrasive Soft Rock Drilling Formations.

Soft Rock Drilling
Shallower Drilled Holes
Repairability
High Wear
Cost Efficient

Meteor Drill Rods constructed from: High Grade Alloy typically used in Abrasive Hard Rock Drilling Formations.

Hard Rock Drilling
Deeper Drilled Holes
Repairability
Low Wear
Production Efficient

Mammoth Drill Rod Benefits

Benefits of the Mammoth Drill Rods

Quality manufacturing
Durability for the best performance
Produced to our outstanding quality control
Fully repairable dependant on wall thickness

Mammoth Repairable Drill Rods

We can repair drill rods

Benefits of repairing Drill Rods

Cost savings
Extended life of tube

Mammoth Drill Rod Technical Specifications

Common Specifications

All designs, specifications and components of the equipment described herein are subject to change at the manufacturer’s discretion at any time without prior notice.

Friction welded all rods up to 219,1mm diameter with 1” wall and 13m length, angle
orientation of spanner flats.

Outside Diameter (in)	Outside Diameter (mm)	Wall Thickness (in)	Wall Thickness (mm)
3″	76.1mm	0.250″	6.35
3″	76.1mm	0.315″	8.00
3½”	88.9mm	0.250″	6.35
3½”	88.9mm	0.375″	9.53
4″	101.6mm	0.500″	12.70
4½”	114.3mm	0.500″	12.70
4½”	114.3mm	0.750″	19.05
5″	127.0mm	0.500″	12.70
5″	127.0mm	0.750″	19.05
5½”	139.7mm	0.500″	12.70
5½”	139.7mm	0.750″	19.05
6″	152.4mm	0.750″	19.05
6¼”	158.8mm	0.500″	12.70
6¼”	158.8mm	0.750″	19.05
6¼”	158.8mm	1.000″	25.40
6⅝”	168.3mm	0.864″	21.95
7″	177.8mm	0.500″	12.70
7″	177.8mm	0.750″	19.05
7″	177.8mm	1.000″	25.40
7½”	190.5mm	1.000″	25.40
7⅝”	193.7mm	0.500″	12.70
7⅝”	193.7mm	0.750″	19.05
7⅝”	193.7mm	1.000″	25.40
8⅝”	219.1mm	0.750″	19.05
8⅝”	219.1mm	0.906″	23.01
8⅝”	219.1mm	1.000″	25.40
9⅝”	235.0mm	1.000″	25.40
9⅝”	235.0mm	1.250″	31.75
10¾”	273.0mm	1.000″	25.40
10¾”	273.0mm	1.250″	31.75
10¾”	273.0mm	1.500″	38.10

Disclaimer: Standard dimensions are shown for reference only. Mammoth Technologies manufactures rotary drill rods to customer-specific requirements, including custom sizes, wall thicknesses, lengths, and thread connections.

Mammoth Drill Rod

Drill rod

Product Details

Advantages

– provides support and stability for the drill string helping to maintain alignment during the drilling process
– guding the drill string and preventing contact between the rotating components on the rig floor.
