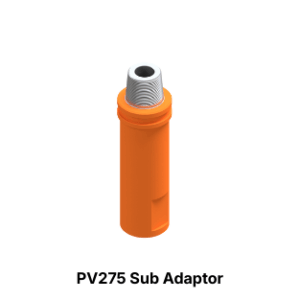

PV275 Sub Adaptor

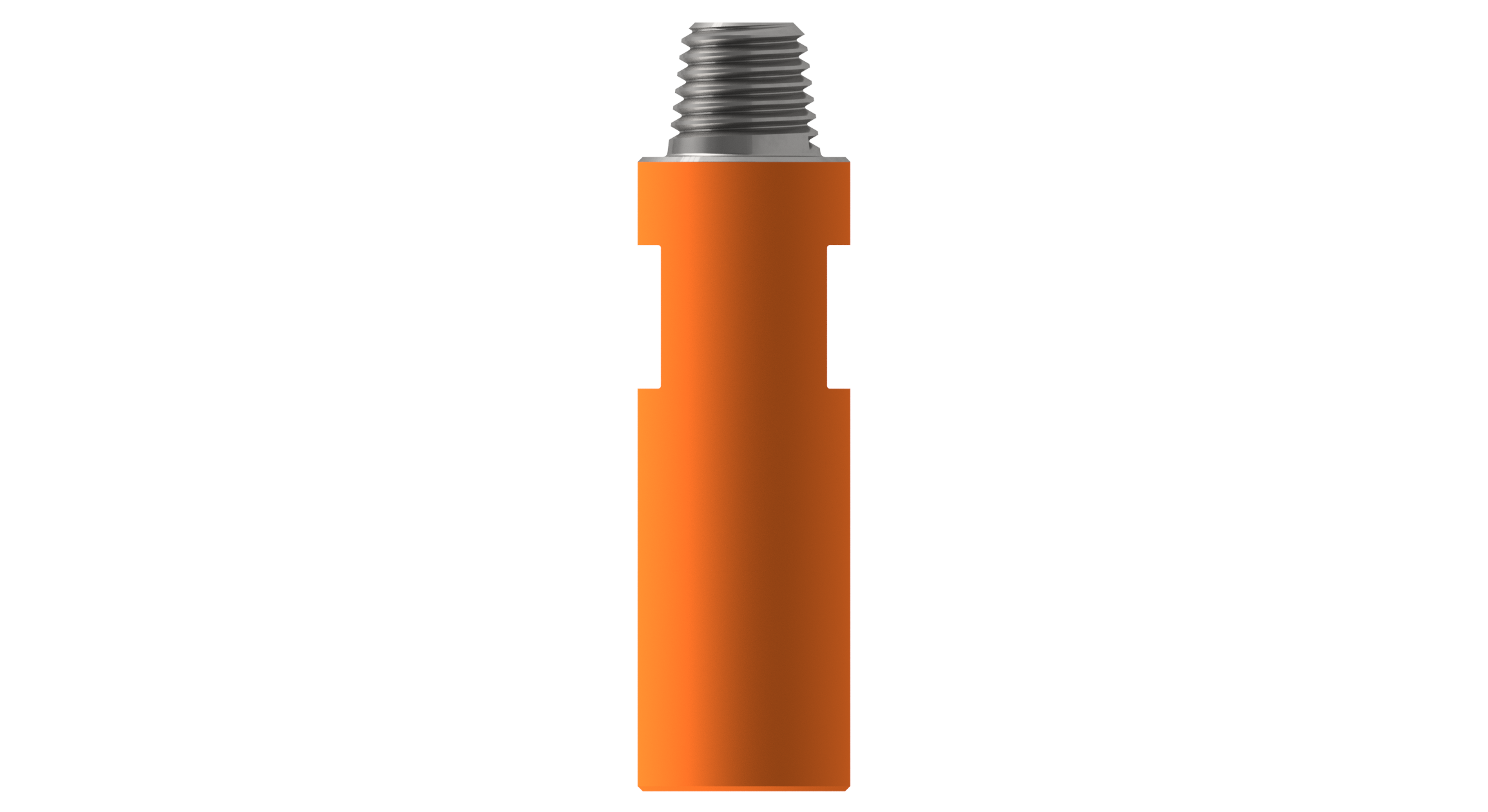

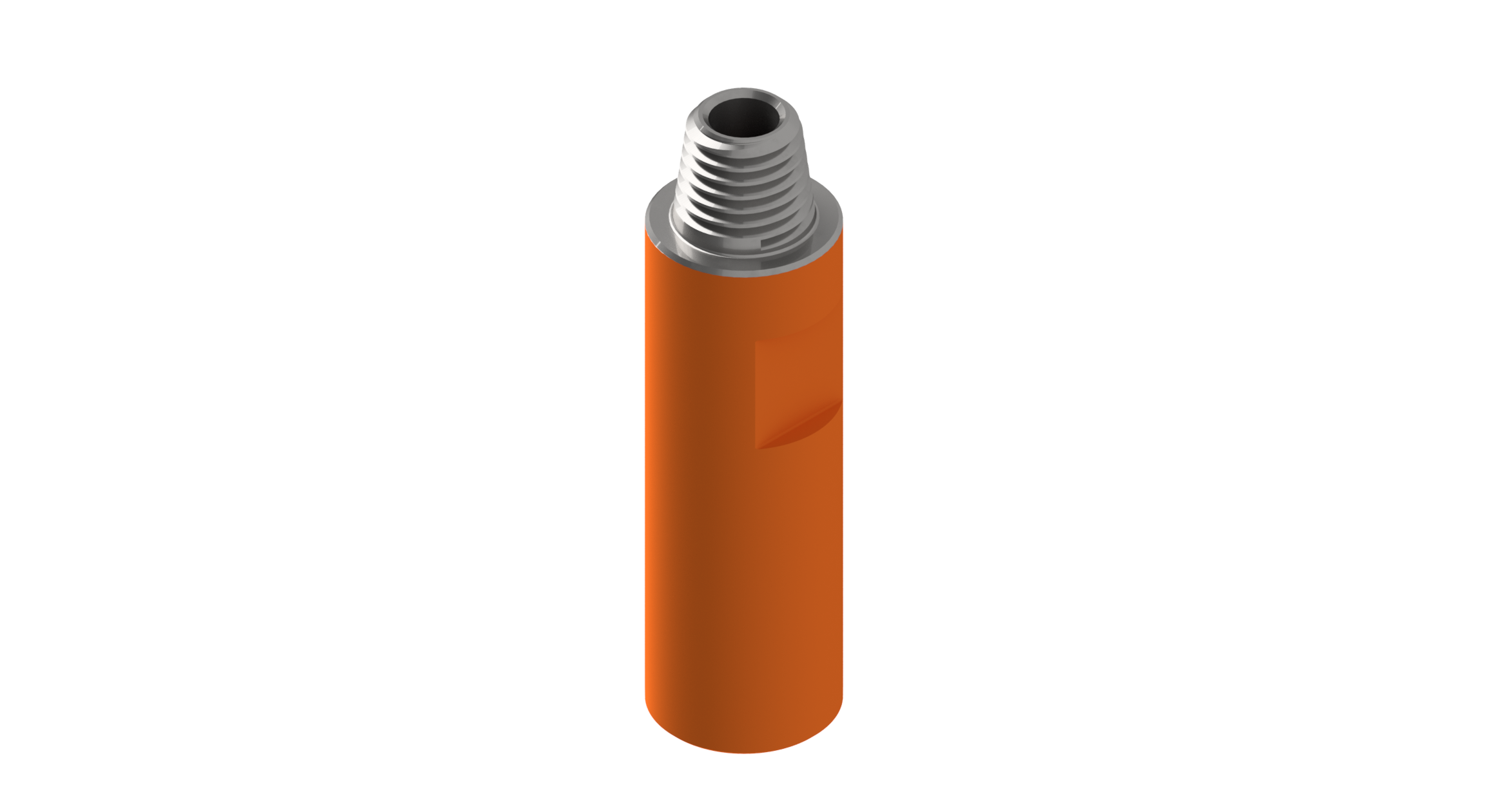

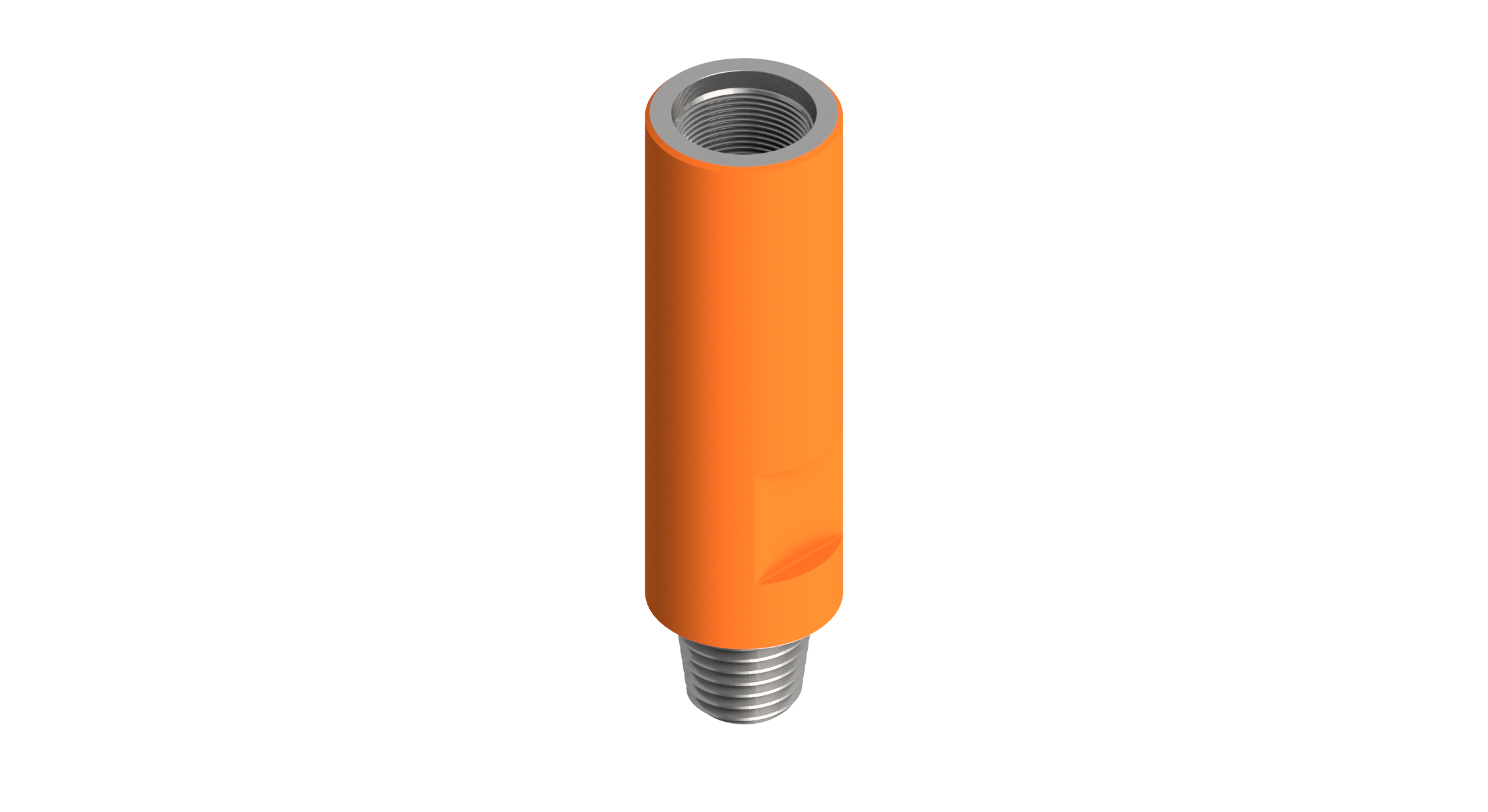

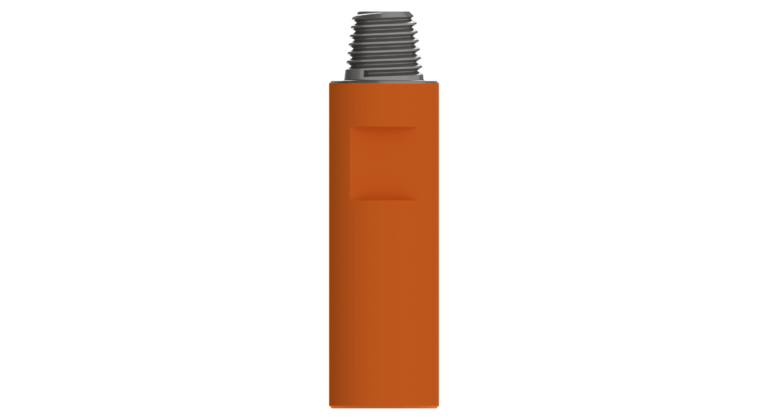

The Mammoth Bottom Sub is a short length of drill collar that has male threads on one end and female on the other. It is screwed onto the bottom of the drill rod and onto the drill bit. It serves as a crossover between the drill rod connections and the bit connection

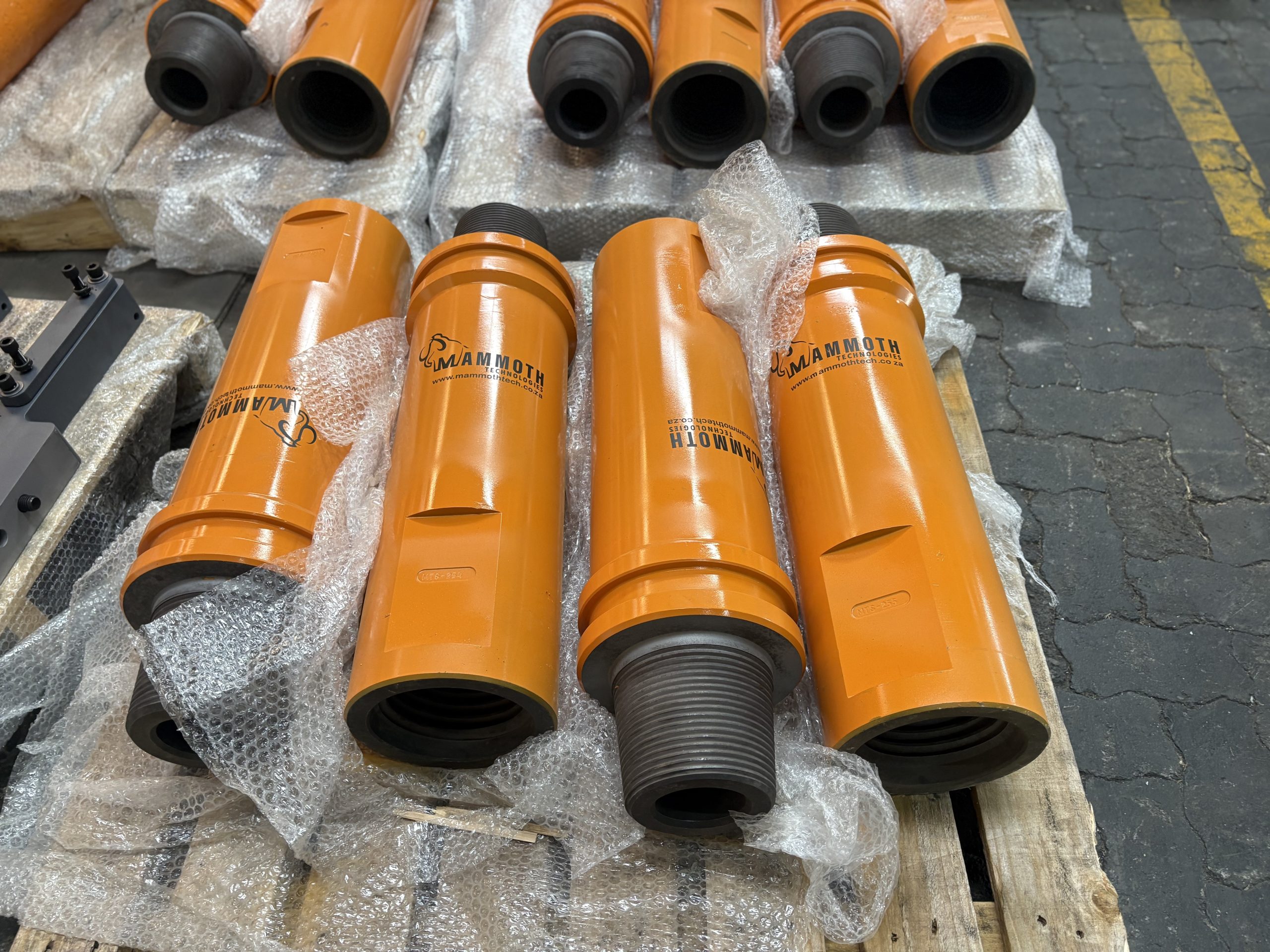

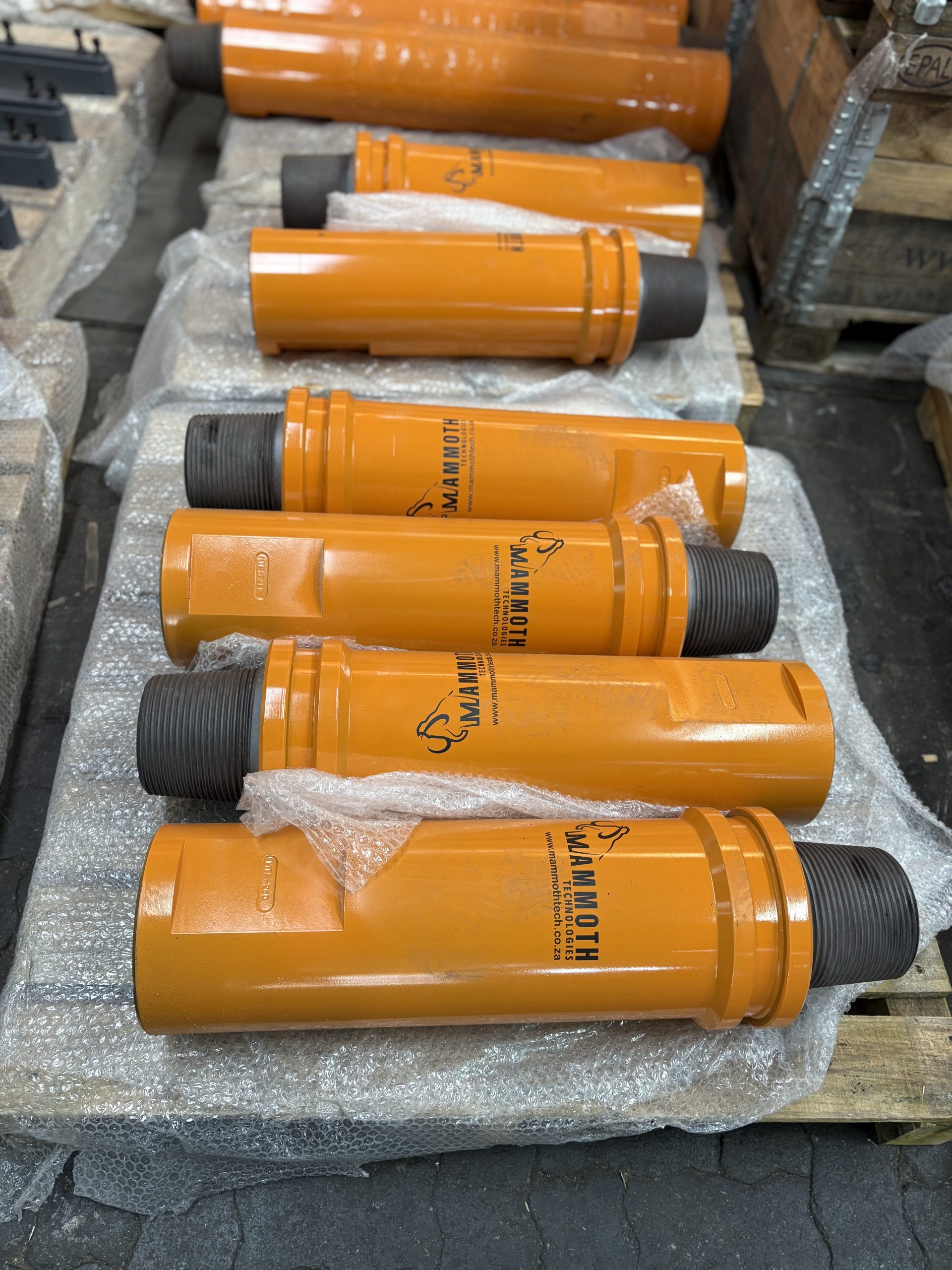

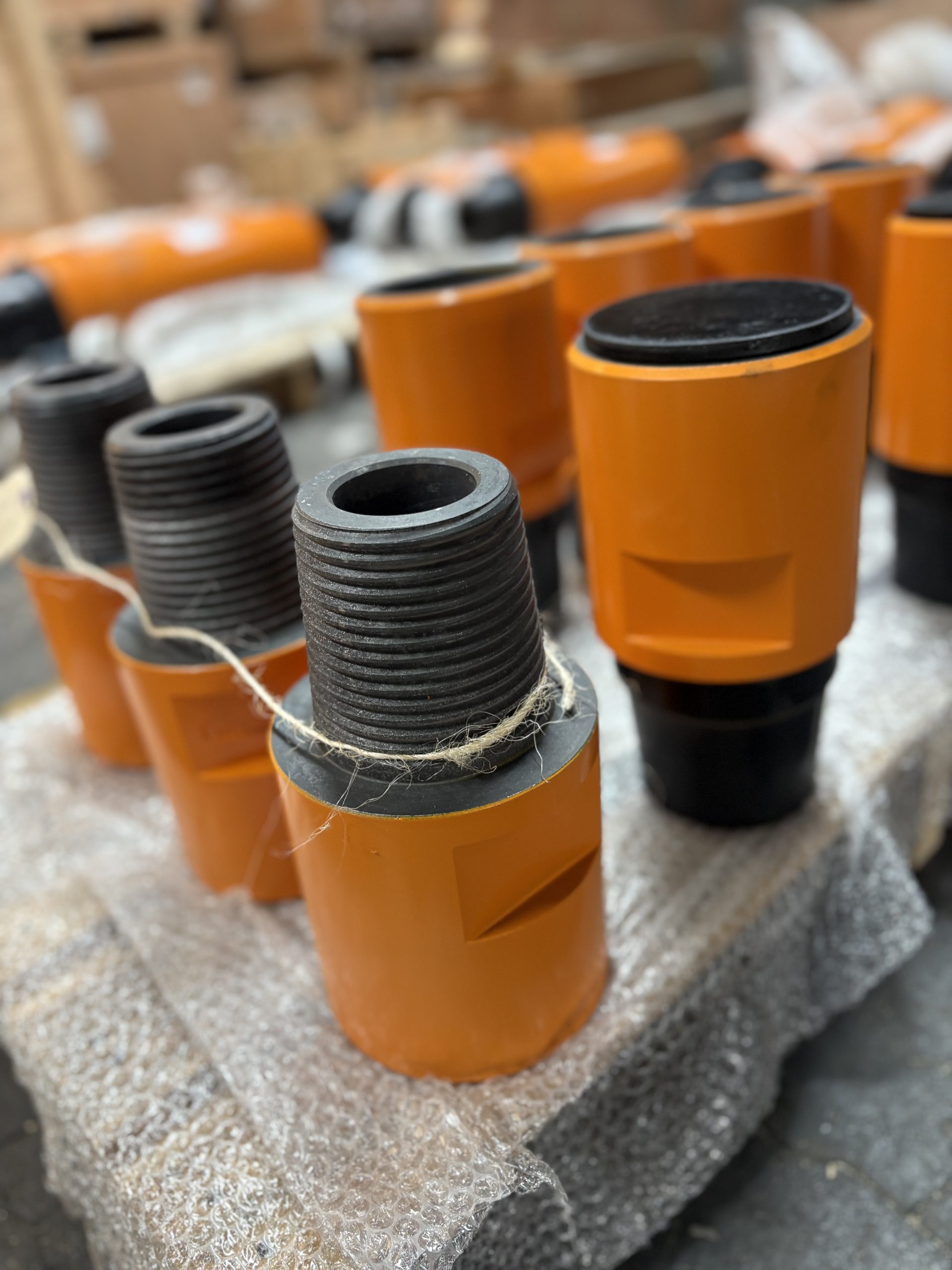

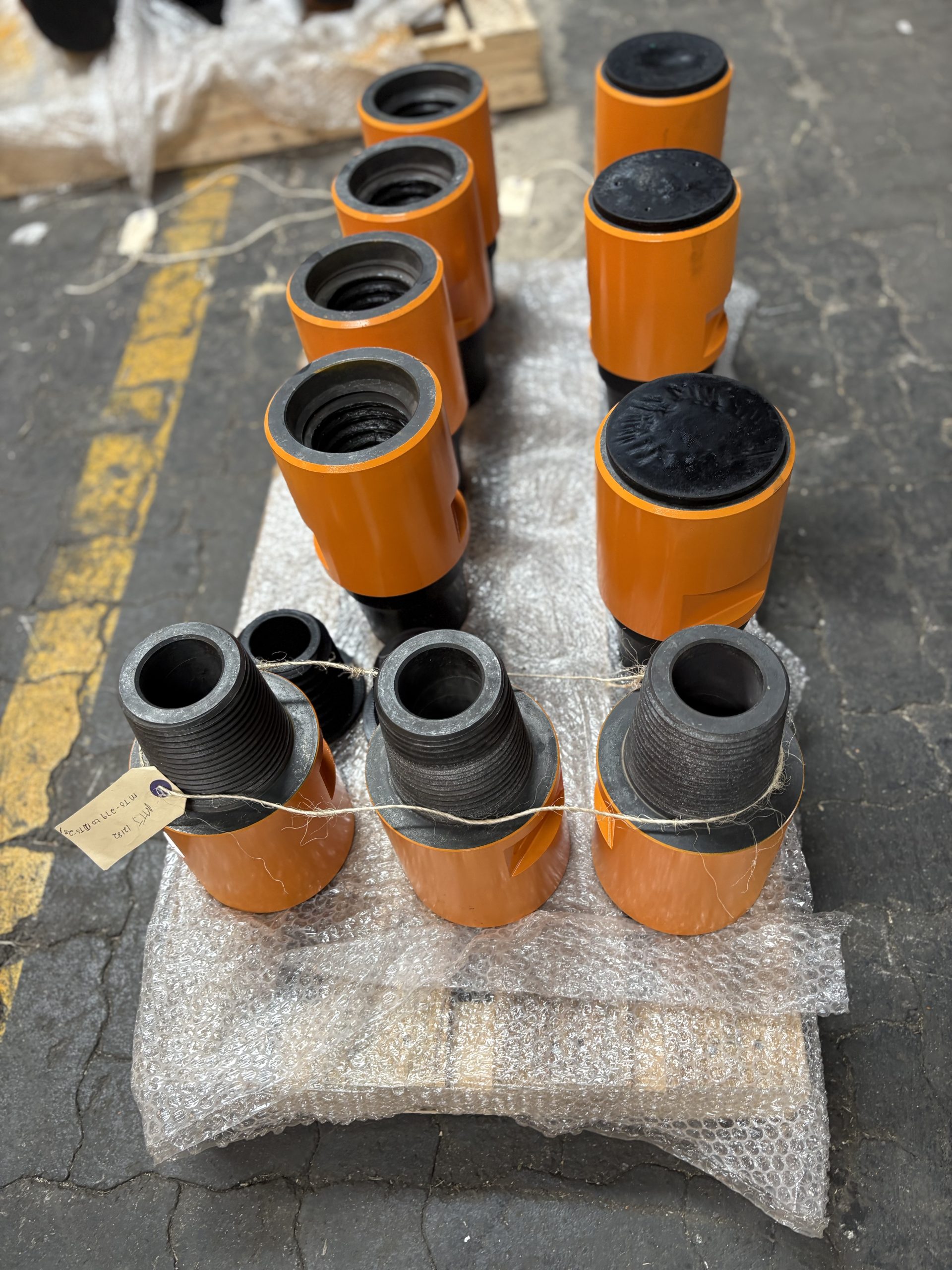

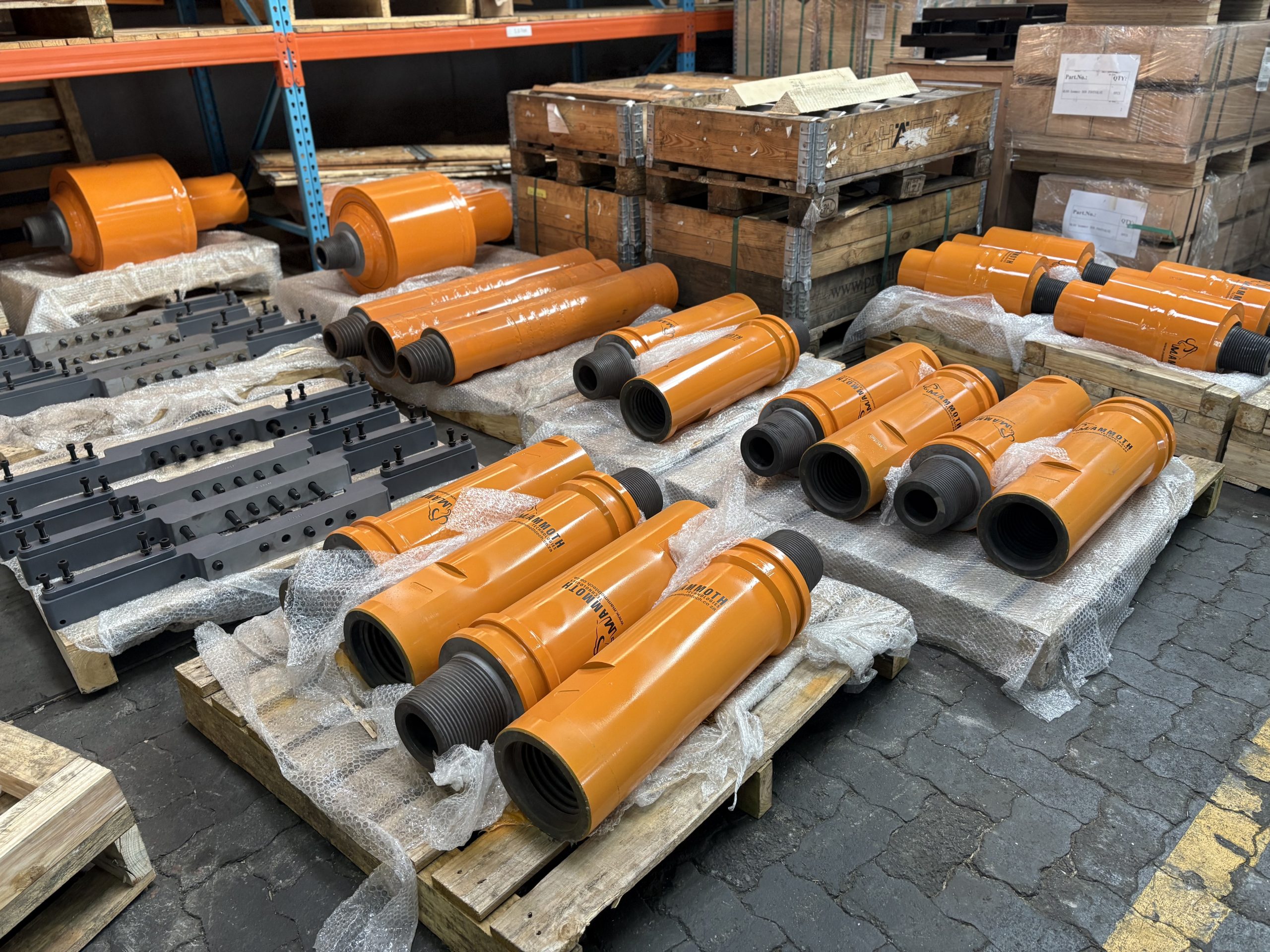

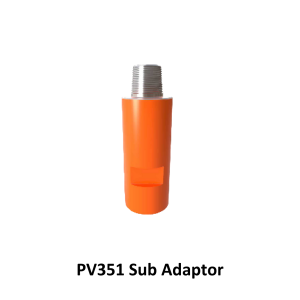

Mammoth Sub Adaptor

Product Description
The Mammoth Bottom Sub is a short length of drill collar that has male threads on one end and female on the other. It is screwed onto the bottom of the drill rod and onto the drill bit. It serves as a crossover between the drill rod connections and the bit connection..

Requirements from customer

Drill manufacturer
Drill model
Drill rod diameter
Shoulder to shoulder length
Actual thread size
Spanner flat position

Benefits of the Mammoth Sub Adaptor

Quality manufacturing
Durability for the best performance
Produced to our outstanding quality control
Fully repairable

Mammoth Sub Adaptor Technical Specifications

Specifications

The Mammoth Top Sub | Bottom Sub can be designed to fit any OEM machine application.
The Mammoth Top Sub | Bottom Sub is not limited to any specific range only.
Mammoth Top Subs | Bottom Subs can be manufactured to customer specifications & thread requirements

Common Specifications

All designs, specifications and components of the equipment described herein are subject to change at the manufacturer’s discretion at any time without prior notice.

Outside Diameter (in)	Outside Diameter (mm)	Recommended Connection
4½”	114.0mm	3½” API & 3½” BECO
5″	127.0mm	3½” BECO
5″	127.0mm	3½” BECO
5½”	139.7mm	3½” BECO
5½”	139.7mm	3½” BECO
6″	152.4mm	4″ BECO
6¼”	158.8mm	4″ BECO
6¼”	158.8mm	4″ BECO
6¼”	158.8mm	4″ BECO
6⅝”	168.3mm	4½” BECO
7″	177.8mm	4½” BECO
7″	177.8mm	4½” BECO
7″	177.8mm	5¼” BECO
7½”	190.5mm	5¼” BECO
7⅝”	193.7mm	5¼” BECO
7⅝”	193.7mm	5¼” BECO
7⅝”	193.7mm	5¼” BECO
8⅝”	219.1mm	6″ BECO
8⅝”	219.1mm	6″ BECO
8⅝”	219.1mm	6″ BECO
10¾”	273.1mm	8″ BECO
10¾”	273.1mm	8″ BECO

Mammoth Top Subs | Bottom Subs can be manufactured to customer specifications & thread requirements.
When rods must be added to increase the depth of drilling, the loosening of the threads are now performed at the bottom end of the saver sub as opposed to the bottom of the top drive (rotary head) which is the most expensive part of the drill string. This means that the connection between the top end of the saver sub and top drive (rotary head) is seldom used, and suffers minimal wear and tear, whereas the lower connection is used in almost all cases displacing the most wear and tear from the rotary head connection to the much lower cost, saver sub which is expendable and does not represent a major investment. The top drive or rotary head component, on the other hand represent a significant capital outlay and considerable downtime when it needs to be replaced.

Sub Adaptors

Product Details

Advantages

– provides support and stability for the drill string helping to maintain alignment during the drilling process
– guding the drill string and preventing contact between the rotating components on the rig floor.
